โบลเวอร์แบบข้างช่อง Gardner Denver G-2BH1

Technical description

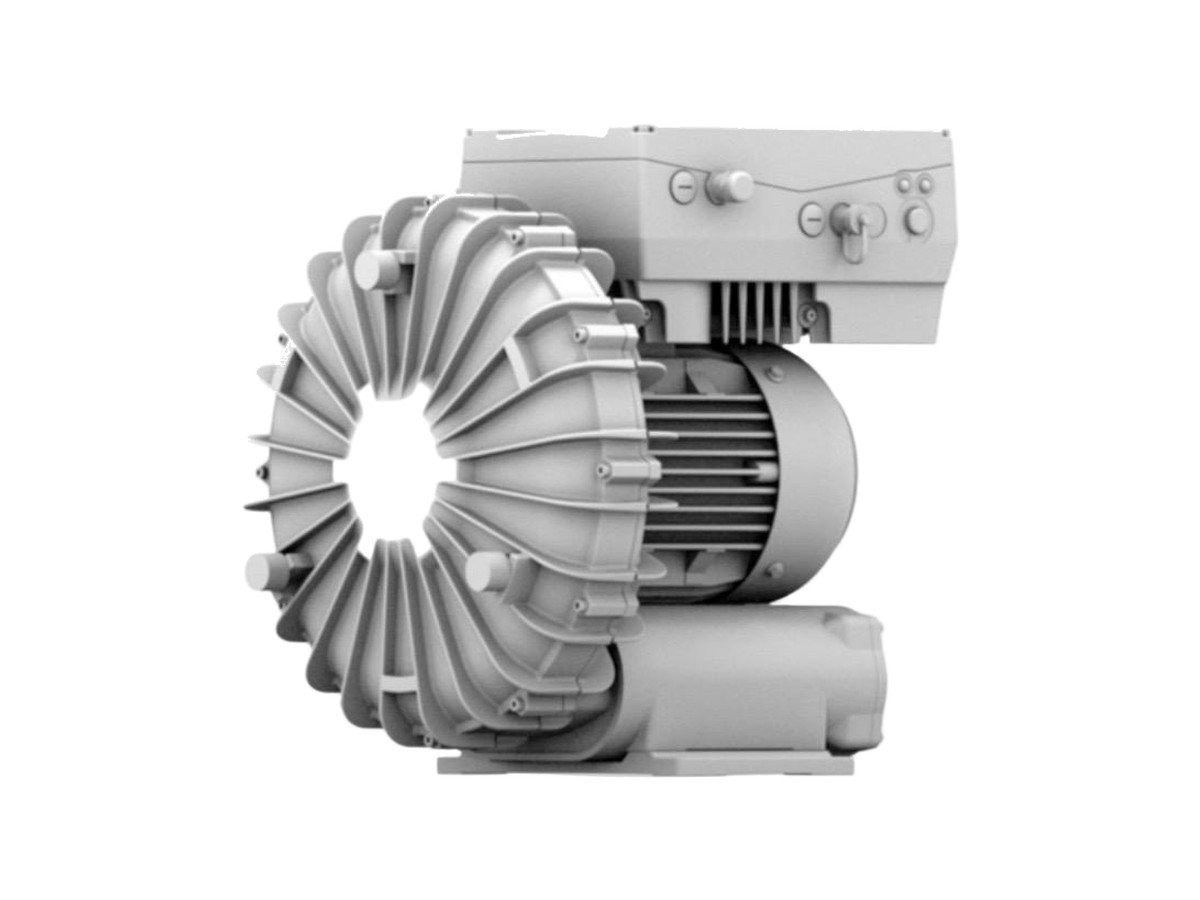

The G-2BH1 is the classic single-stage side channel blower of the Gardner Denver / Elmo Rietschle range. Volume flow runs from 50 to 2,450 m3/h (29.4 to 1,441.2 cfm) with a differential pressure up to 780 mbar, which covers most conveying, extraction and aeration duty in one frame size.

Acoustic engineering keeps the noise level low enough for residential and hospital environments, and the contact-free impeller runs without wear parts in the air path. Motors are available for the 50/60 Hz voltage range.

Key features

• Low noise, acoustically engineered for residential and hospital use
• Contact-free impeller, no wear parts in the air path
• Both suction and pressure ports usable
• Main models: 2BH1100, 2BH1200, 2BH1300, 2BH1400, 2BH1500, 2BH1600, 2BH1800, 2BH1900
• Also available: 2BH1330, 2BH1430, 2BH1490, 2BH1530

Typical applications

• Pneumatic conveying of powders and granules
• Industrial dust and fume extraction
• Wastewater and aquaculture aeration
• Blow-off drying and surface cleaning

Model selection

Flow, differential pressure and motor rating depend on the impeller stage and the motor fitted. Send us the duty point — required flow, pressure or vacuum level, conveyed media, temperature, voltage and area classification — and we will confirm the exact model, stage count and motor.

Supply scope

• Complete unit with motor, mounting feet and terminal box
• Inlet and outlet silencers, filters and flexible connectors available
• Spare parts, seals, impellers, bearings and wearing parts held for after-sales
• Documentation, wiring diagram and commissioning guidance supplied with the unit
